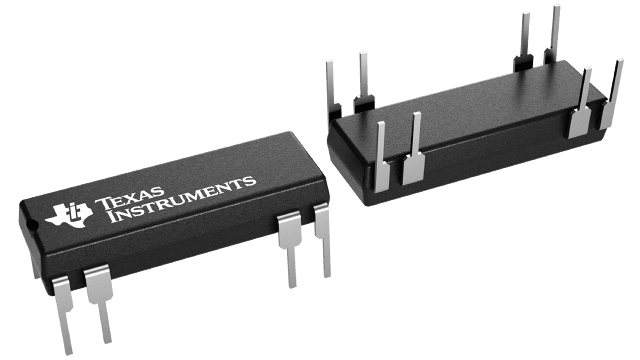

ISO122JP Texas Instruments - Yeehing Electronics

±10-V input, voltage sensing isolated amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	26.11
100 — 249	22.807
250 — 999	17.585
1,000 +	11.01

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Isolation Amplifiers
RoHS	Y
Series	ISO122
Number of Channels	1 Channel
Isolation Voltage	1500 Vrms
Isolation Type	Capacitive, Galvanic
GBP - Gain Bandwidth Product	-
3 dB Bandwidth	50 kHz
CMRR - Common Mode Rejection Ratio	140 dB
Vos - Input Offset Voltage	20 mV
Supply Voltage - Max	18 V
Supply Voltage - Min	4.5 V
Operating Supply Current	5.5 mA
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 85 C
Mounting Style	Through Hole
Package / Case	PDIP-8
Packaging	Tube
Amplifier Type	Isolation
Product	Isolation Amplifiers
Brand	Texas Instruments
Gain Error	0.02 %
Operating Supply Voltage	+ / - 4.5 V to + / - 18 V
Product Type	Isolation Amplifiers
Factory Pack Quantity	25
Subcategory	Amplifier ICs
Unit Weight	0.032805 oz

For more information, please refer to datasheet

Documents

ISO122JP Datasheet

More Information

The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package.
