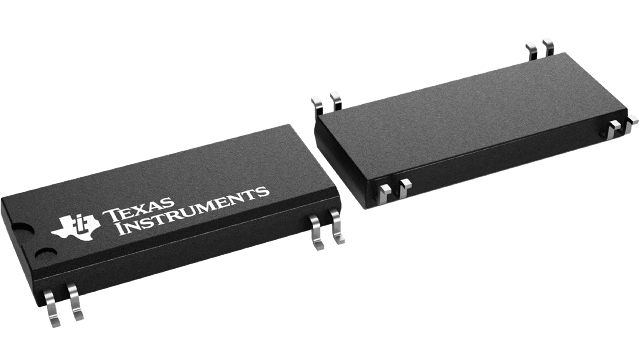

ISO122JU


YeeHing #: Y008-ISO122JU
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ISO122JU Texas Instruments - Yeehing Electronics

±10-V input, voltage sensing isolated amplifier

Pricing (USD)

Quantity Unit Price
1 — 99 26.94
100 — 249 23.532
250 — 999 18.144
1,000 + 11.36

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Isolation Amplifiers
RoHS Y
Series ISO122
Number of Channels 1 Channel
Isolation Voltage 1.5 kVrms
Isolation Type Capacitive, Galvanic
GBP - Gain Bandwidth Product -
3 dB Bandwidth 50 kHz
CMRR - Common Mode Rejection Ratio 140 dB
Vos - Input Offset Voltage 50 mV
Supply Voltage - Max 18 V
Supply Voltage - Min 4.5 V
Minimum Operating Temperature - 25 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case SOIC-28
Packaging Tube
Amplifier Type Isolation
Product Isolation Amplifiers
Brand Texas Instruments
Gain Error 0.02 %
Moisture Sensitive Yes
Operating Supply Voltage 18 V
Product Type Isolation Amplifiers
Factory Pack Quantity 20
Subcategory Amplifier ICs
Unit Weight 0.077603 oz

For more information, please refer to datasheet

Documents

ISO122JU Datasheet

More Information

The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package.
