Texas Instruments
ISO122JU/1K
ISO122JU/1K
Regular price
$9.96 USD
Regular price
Sale price
$9.96 USD
Unit price
per
Couldn't load pickup availability

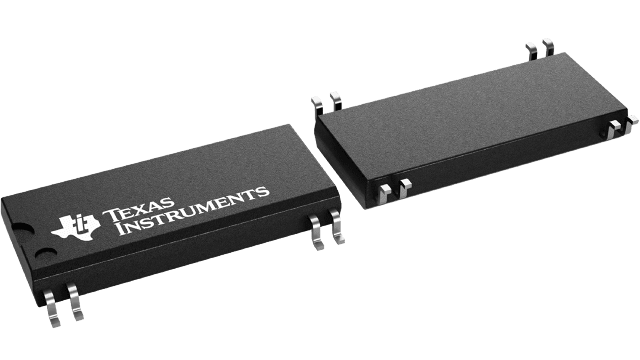

ISO122JU/1K Texas Instruments - Yeehing Electronics
±10-V input, voltage sensing isolated amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.62 |
| 100 — 249 | 20.632 |
| 250 — 999 | 15.908 |
| 1,000 + | 9.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Isolation Amplifiers |
| RoHS | Y |
| Series | ISO122 |
| Number of Channels | 1 Channel |
| Isolation Type | Capacitive, Galvanic |
| CMRR - Common Mode Rejection Ratio | 140 dB |
| Vos - Input Offset Voltage | 50 mV |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-8 |
| Packaging | Reel |
| Amplifier Type | Isolation |
| Product | Isolation Amplifiers |
| Type | Isolation Amplifier |
| Brand | Texas Instruments |
| Gain Error | 0.02 % |
| Maximum Dual Supply Voltage | +/- 18 V |
| Maximum Input Resistance | 200 kOhms (Typ) |
| Minimum Dual Supply Voltage | +/- 4.5 V |
| Moisture Sensitive | Yes |
| Product Type | Isolation Amplifiers |
| Factory Pack Quantity | 1000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.019048 oz |
For more information, please refer to datasheet
Documents
| ISO122JU/1K Datasheet |
More Information
The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package.
