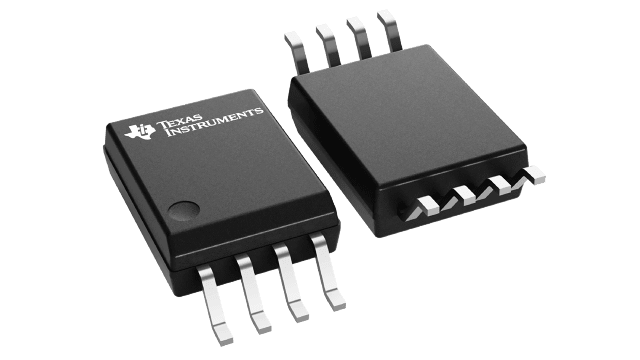

ISO7720FDWV Texas Instruments - Yeehing Electronics

Robust EMC, dual-channel, 2/0, reinforced digital isolator

Pricing (USD)

Quantity	Unit Price
1 — 99	2.4
100 — 249	2.103
250 — 999	1.474
1,000 +	0.83

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Isolators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOIC-8
Series	ISO7720
Number of Channels	2 Channel
Polarity	Unidirectional
Isolation Voltage	5 kVrms
Isolation Type	Capacitive Coupling
Data Rate	100 Mb/s
Propagation Delay Time	11 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.25 V
Operating Supply Current	11.6 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Tube
Product	Digital Isolators
Type	Dual Channel Digital Isolator
Brand	Texas Instruments
Shutdown	No Shutdown
Forward Channels	2 Channel
Maximum Fall Time	3.9 ns
Maximum Rise Time	3.9 ns
Moisture Sensitive	Yes
Pd - Power Dissipation	100 mW
Product Type	Digital Isolators
Pulse Width Distortion	0.5 ns
Reverse Channels	0 Channel
Factory Pack Quantity	64
Subcategory	Interface ICs

For more information, please refer to datasheet

Documents

ISO7720FDWV Datasheet

More Information

The ISO772x devices are high-performance, dual-channel digital isolators with 5000 VRMS (DW and DWV packages) and 3000 VRMS (D package) isolation ratings per UL 1577. This family includes devices with reinforced insulation ratings according to VDE, CSA, TUV and CQC. The ISO7721B device is designed for applications that require basic insulation ratings only.
