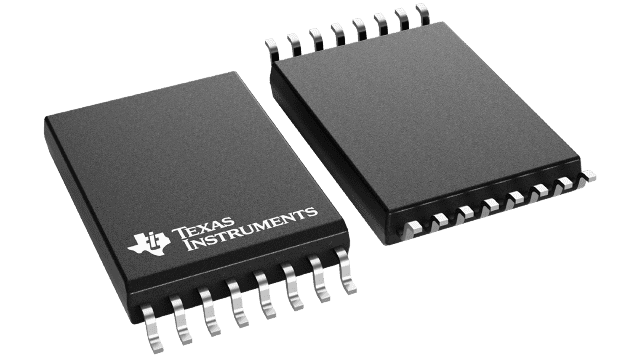

ISO7810DWW Texas Instruments - Yeehing Electronics

Highest isolation rating, single-channel, reinforced digital isolator

Pricing (USD)

Quantity	Unit Price
1 — 99	5.213
100 — 249	4.25
250 — 999	3.34
1,000 +	2.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Isolators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOIC-16
Series	ISO7810
Number of Channels	1 Channel
Polarity	Unidirectional
Isolation Voltage	5.7 kVrms
Isolation Type	Capacitive Coupling
Data Rate	100 Mb/s
Propagation Delay Time	10.7 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.25 V
Operating Supply Current	1.8 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Product	Digital Isolators
Brand	Texas Instruments
Shutdown	No Shutdown
Forward Channels	1 Channel
Maximum Fall Time	2.4 ns
Maximum Rise Time	2.4 ns
Moisture Sensitive	Yes
Pd - Power Dissipation	50 mW
Product Type	Digital Isolators
Pulse Width Distortion	4.6 ns
Reverse Channels	0 Channel
Factory Pack Quantity	1000
Subcategory	Interface ICs
Unit Weight	0.038237 oz

For more information, please refer to datasheet

Documents

ISO7810DWW Datasheet

More Information

The ISO7810x device is a high-performance, single-channel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os.
