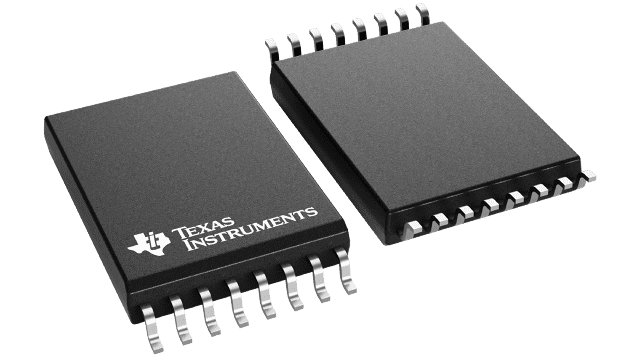

Dual-channel, 2/0, 100-Mbps, high-performance, reinforced isolated LVDS buffer

Pricing (USD)

Quantity	Unit Price
1 — 99	10.123
100 — 249	8.842
250 — 999	6.818
1,000 +	4.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Isolators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOIC-16
Series	ISO7820LL
Number of Channels	2 Channel
Polarity	Unidirectional
Isolation Voltage	5700 Vrms
Isolation Type	Capacitive Coupling
Data Rate	100 Mb/s
Propagation Delay Time	17 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.25 V
Operating Supply Current	14.2 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Tube
Product	Digital Isolators
Type	High Performance
Brand	Texas Instruments
Shutdown	No Shutdown
Forward Channels	2 Channel
Moisture Sensitive	Yes
Pd - Power Dissipation	152 mW
Product Type	Digital Isolators
Pulse Width Distortion	0 ns
Reverse Channels	0 Channel
Factory Pack Quantity	45
Subcategory	Interface ICs
Unit Weight	0.038216 oz

For more information, please refer to datasheet

Documents

ISO7820LLDWW Datasheet

More Information

The ISO782xLL family of devices is a high-performance, isolated dual-LVDS buffer with 8000-VPK isolation voltage. This device provides high electromagnetic immunity and low emissions at low-power consumption, while isolating the LVDS bus signal. Each isolation channel has an LVDS receive and transmit buffer separated by silicon dioxide (SiO2) insulation barrier.
