Texas Instruments
ISO7820LLDWWR
ISO7820LLDWWR
Regular price
$4.34 USD
Regular price
Sale price
$4.34 USD
Unit price
per
Couldn't load pickup availability

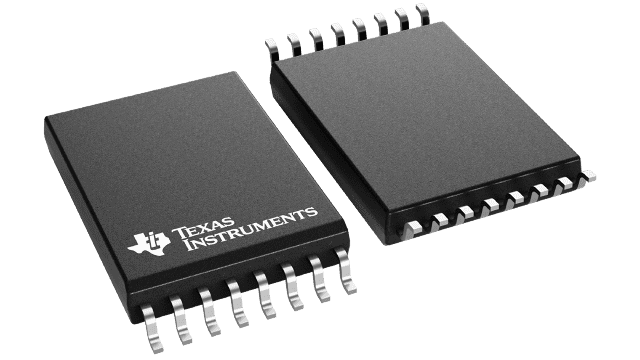

ISO7820LLDWWR Texas Instruments - Yeehing Electronics
Dual-channel, 2/0, 100-Mbps, high-performance, reinforced isolated LVDS buffer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.999 |
| 100 — 249 | 7.86 |
| 250 — 999 | 6.061 |
| 1,000 + | 4.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Isolators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-16 |
| Series | ISO7820LL |
| Number of Channels | 2 Channel |
| Polarity | Unidirectional |
| Isolation Voltage | 5700 Vrms |
| Isolation Type | Capacitive Coupling |
| Data Rate | 100 Mb/s |
| Propagation Delay Time | 17 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.25 V |
| Operating Supply Current | 14.2 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Product | Digital Isolators |
| Type | High Performance |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Forward Channels | 2 Channel |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 152 mW |
| Product Type | Digital Isolators |
| Pulse Width Distortion | 0 ns |
| Reverse Channels | 0 Channel |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| ISO7820LLDWWR Datasheet |
More Information
The ISO782xLL family of devices is a high-performance, isolated dual-LVDS buffer with 8000-VPK isolation voltage. This device provides high electromagnetic immunity and low emissions at low-power consumption, while isolating the LVDS bus signal. Each isolation channel has an LVDS receive and transmit buffer separated by silicon dioxide (SiO2) insulation barrier.
