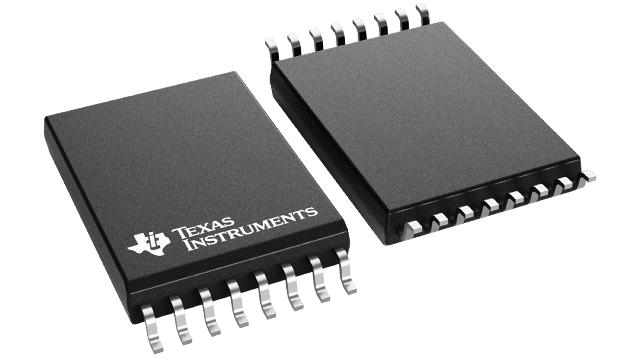

ISO7821DWWR Texas Instruments - Yeehing Electronics
Highest isolation rating, dual-channel, 1/1, reinforced digital isolator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.12 |
| 100 — 249 | 4.989 |
| 250 — 999 | 3.921 |
| 1,000 + | 2.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Isolators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-16 |
| Series | ISO7821 |
| Number of Channels | 2 Channel |
| Polarity | Bidirectional |
| Isolation Voltage | 5.7 kV |
| Isolation Type | Capacitive Coupling |
| Data Rate | 100 Mb/s |
| Propagation Delay Time | 11.7 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.25 V |
| Operating Supply Current | 9.3 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Product | Digital Isolators |
| Brand | Texas Instruments |
| Maximum Fall Time | 2.4 ns |
| Maximum Rise Time | 2.4 ns |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 100 mW |
| Product Type | Digital Isolators |
| Factory Pack Quantity | 1000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.038226 oz |
For more information, please refer to datasheet
Documents
| ISO7821DWWR Datasheet |
More Information
The ISO7821 is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/O’s. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2) insulation barrier. ISO7821 has one forward and one reverse-direction channel. If the input power or signal is lost, default output is high for the ISO7821 and low for the ISO7821F device. Used in conjunction with isolated power supplies, this device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of ISO7821 has been significantly enhanced to ease system-level ESD, EFT, Surge and Emissions compliance. ISO7821 is available in 16-pin SOIC wide-body (DW) and extra-wide body (DWW) packages. The DWW package option comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption.
