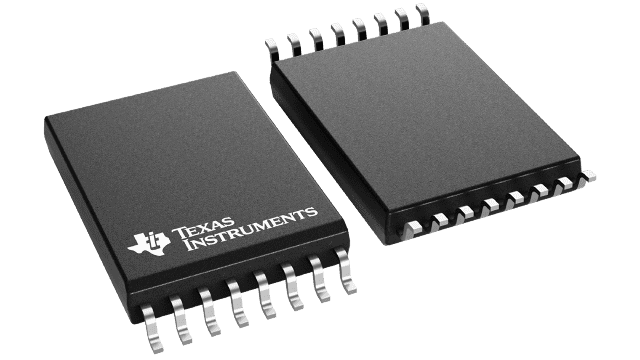

ISO7821FDWW


YeeHing #: Y008-ISO7821FDWW
Inventory: 8800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ISO7821FDWW Texas Instruments - Yeehing Electronics

Highest isolation rating, dual-channel, 1/1, reinforced digital isolator

Pricing (USD)

Quantity Unit Price
1 — 99 6.885
100 — 249 5.613
250 — 999 4.412
1,000 + 2.62

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Isolators
RoHS Y
Mounting Style SMD/SMT
Package / Case SOIC-16
Series ISO7821
Number of Channels 2 Channel
Polarity Bidirectional
Isolation Voltage 5.7 kV
Isolation Type Capacitive Coupling
Data Rate 100 Mb/s
Propagation Delay Time 11.7 ns
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.25 V
Operating Supply Current 9.3 mA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Packaging Reel
Product Digital Isolators
Brand Texas Instruments
Maximum Fall Time 2.4 ns
Maximum Rise Time 2.4 ns
Moisture Sensitive Yes
Pd - Power Dissipation 100 mW
Product Type Digital Isolators
Factory Pack Quantity 1000
Subcategory Interface ICs

For more information, please refer to datasheet

Documents

ISO7821FDWW Datasheet

More Information

The ISO7821 is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/O’s. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2) insulation barrier. ISO7821 has one forward and one reverse-direction channel. If the input power or signal is lost, default output is ’high’ for the ISO7821 and ’low’ for the ISO7821F device. Used in conjunction with isolated power supplies, this device prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of ISO7821 has been significantly enhanced to ease system-level ESD, EFT, Surge and Emissions compliance. ISO7821 is available in 16-pin SOIC wide-body (DW) and extra-wide body (DWW) packages. The DWW package option comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption.
