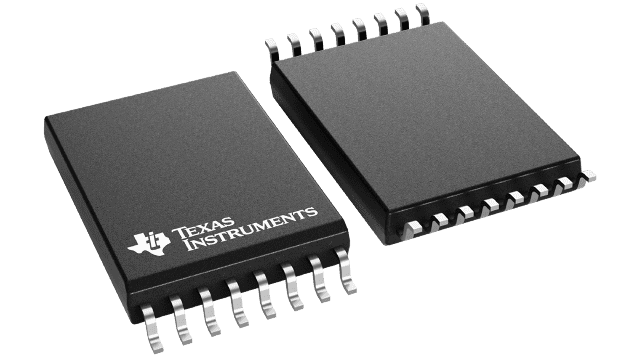

ISO7830DWWR


YeeHing #: Y008-ISO7830DWWR
Inventory: 3800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ISO7830DWWR Texas Instruments - Yeehing Electronics

Highest isolation rating, triple-channel, 3/0, reinforced digital isolator

Pricing (USD)

Quantity Unit Price
1 — 99 6.693
100 — 249 5.846
250 — 999 4.508
1,000 + 2.82

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Digital Isolators
RoHS Y
Mounting Style SMD/SMT
Package / Case SOIC-16
Series ISO7830
Number of Channels 3 Channel
Polarity Unidirectional
Isolation Voltage 5.7 kVrms
Isolation Type Capacitive Coupling
Data Rate 100 Mb/s
Propagation Delay Time 11 ns
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.25 V
Operating Supply Current 17.5 mA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Packaging Reel
Product Digital Isolators
Type High Performance
Brand Texas Instruments
Shutdown No Shutdown
Forward Channels 3 Channel
Maximum Fall Time 3.9 ns
Maximum Rise Time 3.9 ns
Moisture Sensitive Yes
Pd - Power Dissipation 150 mW
Product Type Digital Isolators
Pulse Width Distortion 550 ps
Reverse Channels 0 Channel
Factory Pack Quantity 1000
Subcategory Interface ICs
Unit Weight 0.038219 oz

For more information, please refer to datasheet

Documents

ISO7830DWWR Datasheet

More Information

The ISO7830x device is a high-performance, 3-channel digital isolator with 8000-VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, TUV and CQC. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os.
