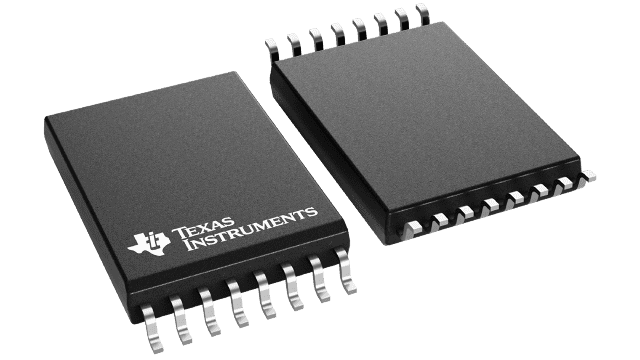

ISO7831FDWWR Texas Instruments - Yeehing Electronics
Highest isolation rating, triple-channel, 2/1, reinforced digital isolator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.693 |
100 — 249 | 5.846 |
250 — 999 | 4.508 |
1,000 + | 2.33 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Digital Isolators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SOIC-16 |
Series | ISO7831 |
Number of Channels | 3 Channel |
Polarity | Unidirectional |
Isolation Voltage | 5.7 kVrms |
Isolation Type | Capacitive Coupling |
Data Rate | 100 Mb/s |
Propagation Delay Time | 11 ns |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 2.25 V |
Operating Supply Current | 8.7 mA, 13.2 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Product | Digital Isolators |
Brand | Texas Instruments |
Shutdown | No Shutdown |
Forward Channels | 2 Channel |
Maximum Fall Time | 3.9 ns |
Maximum Rise Time | 3.9 ns |
Moisture Sensitive | Yes |
Pd - Power Dissipation | 150 mW |
Product Type | Digital Isolators |
Pulse Width Distortion | 550 ps |
Reverse Channels | 1 Channel |
Factory Pack Quantity | 1000 |
Subcategory | Interface ICs |
Unit Weight | 0.038219 oz |
For more information, please refer to datasheet
Documents
ISO7831FDWWR Datasheet |
More Information
The ISO7831x device is a high-performance, 3-channel digital isolator with 8000-VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, TUV and CQC. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os.
