Description

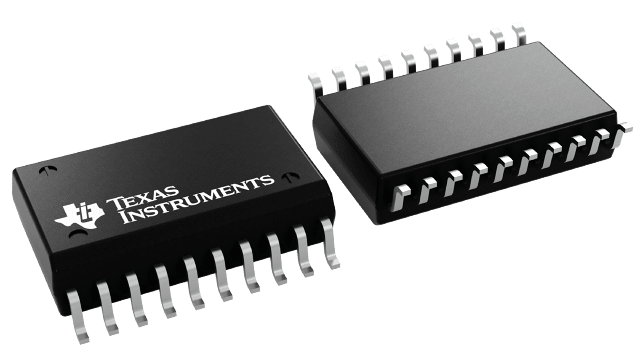

ISOW1412DFMR Texas Instruments - Yeehing Electronics
Low-emissions, 500-kbps, reinforced isolated RS-485/RS-422 transceiver with integrated power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.438 |
| 100 — 249 | 7.37 |
| 250 — 999 | 5.683 |
| 1,000 + | 5.14 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| ISOW1412DFMR Datasheet |
More Information
The ISOW14x2 devices are galvanically-isolated RS-485/RS-422 transceiver s with a built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. The low-emissions, isolated DC-DC converter meets CISPR 32 radiated emissions Class B standard with just two ferrite beads on a simple two-layer PCB. Additional 20 mA output current can be used to power other circuits on the board. An integrated 2 Mbps GPIO channel helps remove any additional digital isolator or optocoupler for diagnotstics, LED indication or supply monitoring.
