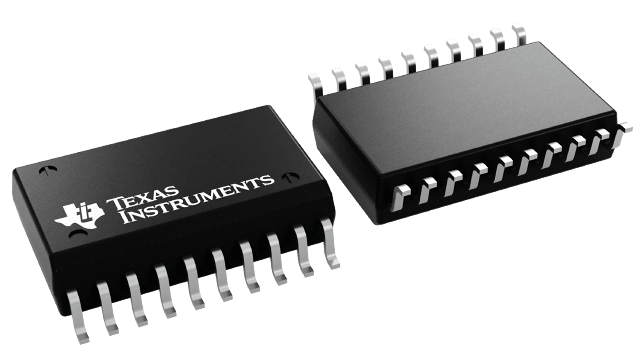

ISOW1432DFMR Texas Instruments - Yeehing Electronics

Low emissions, 5-kVrms, 12-Mbps isolated RS-485 transceiver with integrated DC/DC converter

Pricing (USD)

Quantity	Unit Price
1 — 99	8.805
100 — 249	7.691
250 — 999	5.93
1,000 +	3.71

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ISOW1432DFMR Datasheet

More Information

The ISOW14x2 devices are galvanically-isolated RS-485/RS-422 transceiver s with a built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. The low-emissions, isolated DC-DC converter meets CISPR 32 radiated emissions Class B standard with just two ferrite beads on a simple two-layer PCB. Additional 20 mA output current can be used to power other circuits on the board. An integrated 2 Mbps GPIO channel helps remove any additional digital isolator or optocoupler for diagnotstics, LED indication or supply monitoring.
