Texas Instruments
IWR1642AQAGABLR
IWR1642AQAGABLR
Regular price
$8.40 USD
Regular price
Sale price
$8.40 USD
Unit price
per
Couldn't load pickup availability

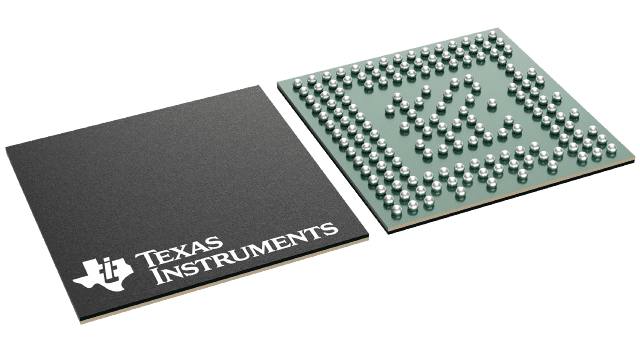

IWR1642AQAGABLR Texas Instruments - Yeehing Electronics
Single-chip 76-GHz to 81-GHz mmWave sensor integrating DSP and MCU
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.36 |
| 100 — 249 | 16.32 |
| 250 — 999 | 13.416 |
| 1,000 + | 8.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF System on a Chip - SoC |
| RoHS | Y |
| Type | Radar |
| Core | ARM Cortex R4F |
| Operating Frequency | 76 GHz to 81 GHz |
| Maximum Data Rate | 900 Mb/s |
| Output Power | 12.5 dBm |
| Operating Supply Voltage | 1.2 V, 1.3 V, 1.8 V, 3.3 V |
| Program Memory Size | 256 kB |
| Operating Temperature Range | - 40 C to + 105 C |
| Package / Case | FCBGA-161 |
| Packaging | Reel |
| Height | 1.17 mm |
| Length | 10.5 mm |
| Series | IWR1642 |
| Width | 10.5 mm |
| Brand | Texas Instruments |
| Data RAM Size | 192 kB |
| Data RAM Type | RAM |
| Interface Type | CAN, I2C, SPI, UART |
| Mounting Style | SMD/SMT |
| ADC Resolution | 12 bit |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 200 MHz |
| Maximum Operating Temperature | + 105 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 6 Channel |
| Product Type | RF System on a Chip - SoC |
| Factory Pack Quantity | 1000 |
| Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
| IWR1642AQAGABLR Datasheet |
More Information
The IWR1642 device is an integrated single-chip mmWave sensor based on FMCW radar technology capable of operation in the 76- to 81-GHz band with up to 4 GHz continuous chirp. The device is built with TI’s low-power 45-nm RFCMOS process, and this solution enables unprecedented levels of integration in an extremely small form factor. The IWR1642 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in industrial applications such as building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.
