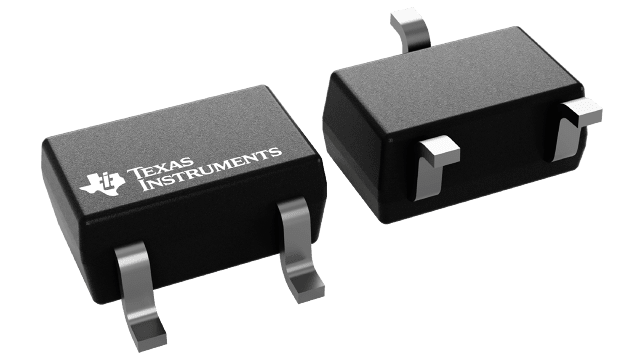

JFE150DCKR Texas Instruments - Yeehing Electronics
Ultra-low-noise, low-gate-current, audio, N-channel JFET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.083 |
| 100 — 249 | 1.721 |
| 250 — 999 | 1.236 |
| 1,000 + | 0.65 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| JFE150DCKR Datasheet |
More Information
The JFE150 is a Burr-Brown™ discrete JFET built using Texas Instruments modern, high-performance, analog bipolar process. The JFE150 features performance not previously available in older discrete JFET technologies. The JFE150 offers the maximum possible noise-to-power efficiency and flexibility, where the quiescent current can be set by the user and yields excellent noise performance for currents from 50 µA to 20 mA. When biased at 5 mA, the device yields 0.8 nV/√Hz of input-referred noise, giving ultra-low noise performance with extremely high input impedance (> 1 TΩ). The JFE150 also features integrated diodes connected to separate clamp nodes to provide protection without the addition of high leakage, nonlinear external diodes.
