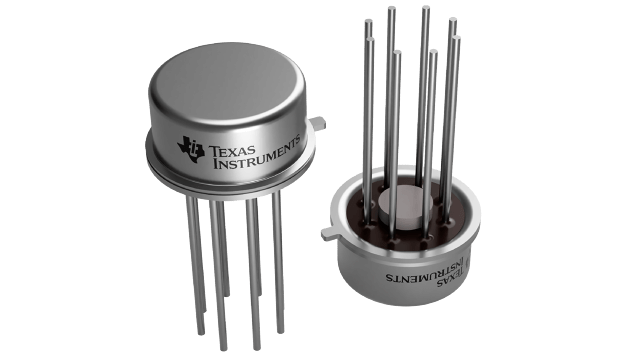

JL156BGA Texas Instruments - Yeehing Electronics

Military-grade, single, 40-V, 5-MHz, FET-input operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	27.945
100 — 249	24.84
250 — 999	20.42
1,000 +	12.79

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

JL156BGA Datasheet

More Information

This is the first monolithic JFET input operational amplifier to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). This amplifier features low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The device is also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/ƒ noise corner.
