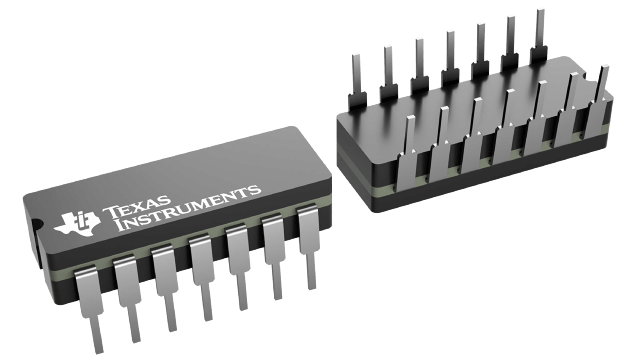

JM38510/32702BCA Texas Instruments - Yeehing Electronics
Dual 4-Bit Binary Counters
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 18.957 |
100 — 249 | 16.559 |
250 — 999 | 12.768 |
1,000 + | 7.99 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -55 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 1 |
Package | Pins | CDIP (J) | 14 |
For more information, please refer to datasheet
Documents
JM38510/32702BCA Datasheet |
More Information
Each of these monolithic circuits contains eight master-slave flip-flops and additional gating to implement two individual four-bit counters in a single package. The '390 and 'LS390 incorporate dual divide-by-two and divide-by-five counters, which can be used to implement cycle lengths equal to any whole and/or cumulative multiples of 2 and/or 5 up to divide-by-100. When connected as a bi-quinary counter, the separate divide-by-two circuit can be used to provide symmetry (a square wave) at the final output stage. The '393 and 'LS393 each comprise two independent four-bit binary counters each having a clear and a clock input. N-bit binary counters can be implemented with each package providing the capability of divide-by-256. The '390, 'LS390, '393, and 'LS393 have parallel outputs from each counter stage so that any submultiple of the input count frequency is available for system-timing signals. Series 54 and Series 54LS circuits are characterized for operation over the full military temperature range of -55°C to 125°C; Series 74 and Series 74LS circuits are characterized for operation from 0°C to 70°C.
