Texas Instruments
L293DNE
L293DNE
Regular price
$1.07 USD
Regular price
Sale price
$1.07 USD
Unit price
per
Couldn't load pickup availability

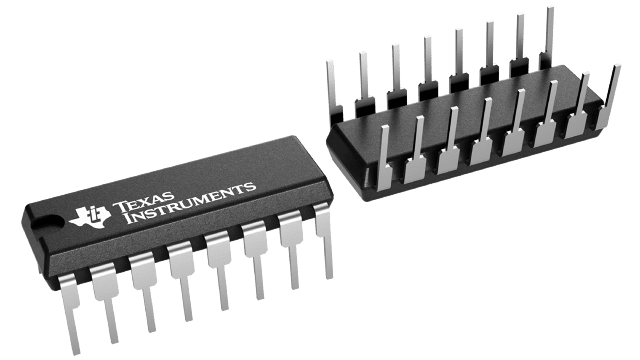

L293DNE Texas Instruments - Yeehing Electronics
Quadruple Half-H Drivers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.083 |
| 100 — 249 | 2.701 |
| 250 — 999 | 1.894 |
| 1,000 + | 1.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | Motor Driver |
| Operating Supply Voltage | 36 V |
| Output Current | 600 mA |
| Operating Supply Current | 24 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | Through Hole |
| Package / Case | PDIP-16 |
| Packaging | Tube |
| Number of Outputs | 4 Output |
| Operating Temperature Range | 0 C to + 70 C |
| Output Voltage | 36 V |
| Series | L293D |
| Brand | Texas Instruments |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 25 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.033570 oz |
For more information, please refer to datasheet
Documents
| L293DNE Datasheet |
More Information
The L293 and L293D devices are quadruple high-current half-H drivers. The L293 is designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V. Both devices are designed to drive inductive loads such as relays, solenoids, DC and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.
