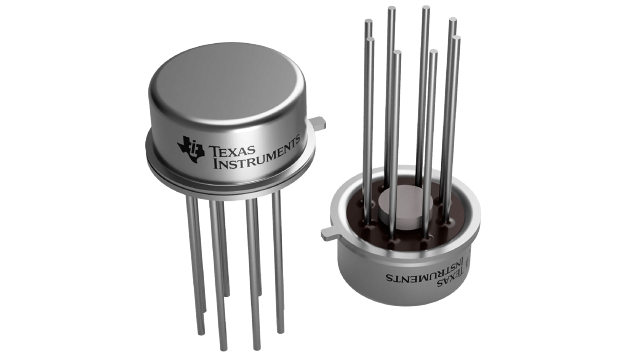

LF156H Texas Instruments - Yeehing Electronics
Single, 40-V, 5-MHz, -55 to 125°C, FET-input operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 36.592 |
100 — 249 | 29.831 |
250 — 999 | 23.447 |
1,000 + | 13.92 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-99-8 |
Supply Voltage - Max | 44 V |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 5 MHz |
SR - Slew Rate | 12 V/us |
CMRR - Common Mode Rejection Ratio | 85 dB to 100 dB |
Ib - Input Bias Current | 50 pA |
Vos - Input Offset Voltage | 2 mV |
Supply Voltage - Min | 10 V |
Operating Supply Current | 5 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Shutdown | No Shutdown |
Series | LF156 |
Packaging | Bulk |
Amplifier Type | JFET |
Height | 4.45 mm |
Input Type | Rail-to-Rail |
Length | 9.14 mm |
Product | Operational Amplifiers |
Supply Type | Dual |
Technology | BiFET |
Width | 9.14 mm |
Brand | Texas Instruments |
en - Input Voltage Noise Density | 15 nV/sqrt Hz at +/- 15 V |
In - Input Noise Current Density | 0.01 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 22 V |
Minimum Dual Supply Voltage | +/- 15 V |
Operating Supply Voltage | 10 V to 44 V |
Pd - Power Dissipation | 1200 mW |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 85 dB |
Factory Pack Quantity | 500 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 106.02 dB |
For more information, please refer to datasheet
Documents
LF156H Datasheet |
More Information
The LFx5x devices are the first monolithic JFET input operational amplifiers to incorporate well-matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.
