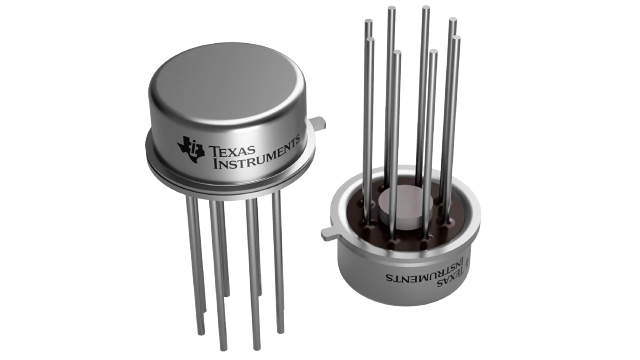

LF156H/NOPB
LF156H/NOPB
Regular price
$13.92 USD
Regular price
Sale price
$13.92 USD
Unit price
per
Couldn't load pickup availability
LF156H/NOPB Texas Instruments - Yeehing Electronics
Single, 40-V, 5-MHz, -55 to 125°C, FET-input operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 36.592 |
| 100 — 249 | 29.831 |
| 250 — 999 | 23.447 |
| 1,000 + | 13.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-99-8 |
| Supply Voltage - Max | 44 V |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 5 MHz |
| SR - Slew Rate | 12 V/us |
| CMRR - Common Mode Rejection Ratio | 85 dB to 100 dB |
| Ib - Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | 2 mV |
| Supply Voltage - Min | 10 V |
| Operating Supply Current | 5 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | LF156 |
| Packaging | Bulk |
| Amplifier Type | JFET |
| Height | 4.45 mm |
| Input Type | Rail-to-Rail |
| Length | 9.14 mm |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Technology | BiFET |
| Width | 9.14 mm |
| Brand | Texas Instruments |
| en - Input Voltage Noise Density | 15 nV/sqrt Hz at +/- 15 V |
| In - Input Noise Current Density | 0.01 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 22 V |
| Minimum Dual Supply Voltage | +/- 15 V |
| Operating Supply Voltage | 10 V to 44 V |
| Pd - Power Dissipation | 1200 mW |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 85 dB |
| Factory Pack Quantity | 500 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 106.02 dB |
For more information, please refer to datasheet
Documents
| LF156H/NOPB Datasheet |
More Information
The LFx5x devices are the first monolithic JFET input operational amplifiers to incorporate well-matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET™ Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.
