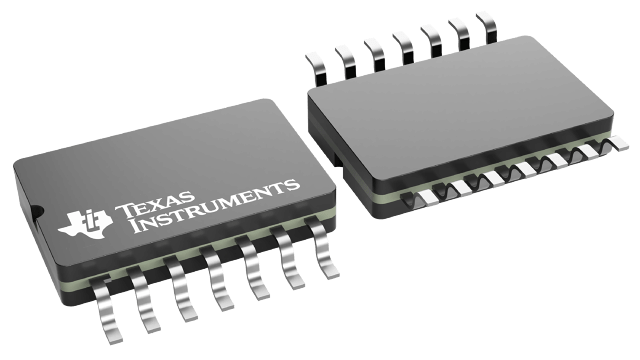

LF198WG-QMLV Texas Instruments - Yeehing Electronics

Monolithic Sample and Hold Circuit

Pricing (USD)

Quantity	Unit Price
1 — 99	361.86
100 — 249	331.705
250 — 999	301.55
1,000 +	253.30

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LF198WG-QMLV Datasheet

More Information

The LF198 is a monolithic sample-and-hold circuit which utilizes BI-FET technology to obtain ultra-high dc accuracy with fast acquisition of signal and low droop rate. Operating as a unity gain follower, dc gain accuracy is 0.002% typical and acquisition time is as low as 6 μs to 0.01%. A bipolar input stage is used to achieve low offset voltage and wide bandwidth. Input offset adjust is accomplished with a single pin, and does not degrade input offset drift. The wide bandwidth allows the LF198 to be included inside the feedback loop of 1 MHz op amps without having stability problems. Input impedance of 1010Ω allows high source impedances to be used without degrading accuracy.
