Texas Instruments

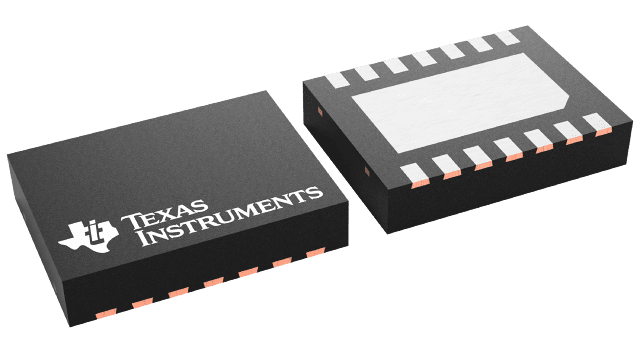

LM10000SD/NOPB
LM10000SD/NOPB
Regular price
$1.46 USD
Regular price
Sale price
$1.46 USD
Unit price
per
Couldn't load pickup availability
LM10000SD/NOPB Texas Instruments - Yeehing Electronics
AVS System Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.202 |
| 100 — 249 | 3.682 |
| 250 — 999 | 2.581 |
| 1,000 + | 1.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 59 mA |
| Input Voltage Range | 3 V to 5.5 V |
| Input Current | 500 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Package / Case | WSON-14 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LM10000 |
| Brand | Texas Instruments |
| Operating Supply Current | 500 uA |
| Operating Supply Voltage | 3 V to 5.5 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM10000SD/NOPB Datasheet |
More Information
The LM10000 is used to enable Adaptive Voltage Scaling (AVS) to non-AVS regulators. It includes a complete Slave Power Controller (SPC 2.0) to communicate to the PowerWise Interface (PWI 2.0), and a programmable current output DAC that allows voltage control to any regulator utilizing a feedback node/resistors to set the output voltage.
