Texas Instruments
LM10500SQ-0.8/NOPB
LM10500SQ-0.8/NOPB
Regular price
$3.43 USD
Regular price
Sale price
$3.43 USD
Unit price
per
Couldn't load pickup availability

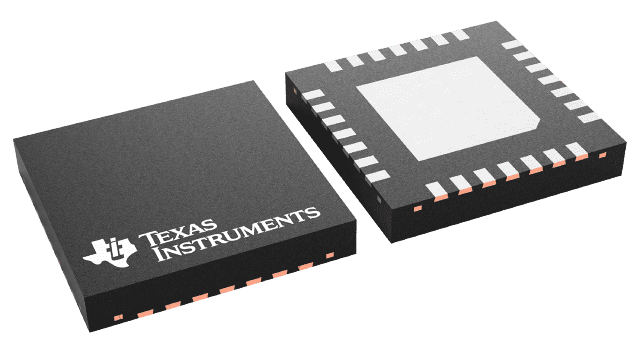

LM10500SQ-0.8/NOPB Texas Instruments - Yeehing Electronics
5A Step-Down Energy Management Unit With PowerWise® Adaptive Voltage Scaling
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.016 |
| 100 — 249 | 7.35 |
| 250 — 999 | 5.777 |
| 1,000 + | 3.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-28 |
| Output Voltage | 5 V |
| Output Current | 5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 18 V |
| Input Voltage MIN | 3 V |
| Switching Frequency | 300 kHz to 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM10500 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 9 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| LM10500SQ-0.8/NOPB Datasheet |
More Information
The LM10500 is a 5A Energy Management Unit (EMU) that actively reduces system-level power consumption by utilizing a continuous, real-time, closed-loop Adaptive Voltage Scaling (AVS) scheme. The LM10500 operates cooperatively with PowerWise AVS compatible ASICs, SoCs, and processors to optimize supply voltages adaptively over process and temperature variations. The device is controlled via PowerWise Interface (PWI) 1.0 or PWI 2.0 high-speed serial interface.
