Texas Instruments

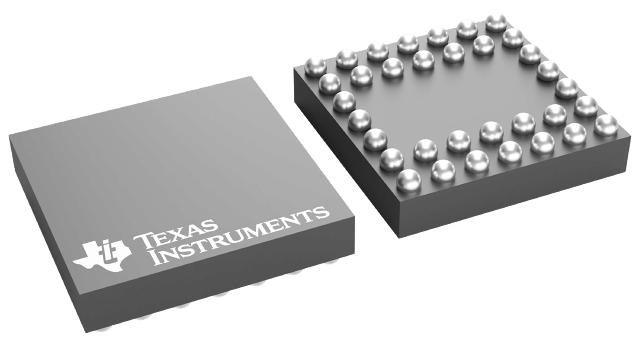

LM10506TME-A/NOPB
LM10506TME-A/NOPB
Regular price
$1.19 USD
Regular price
Sale price
$1.19 USD
Unit price
per
Couldn't load pickup availability
LM10506TME-A/NOPB Texas Instruments - Yeehing Electronics
Triple Buck + LDO Power Management IC (PMIC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.438 |
| 100 — 249 | 3.013 |
| 250 — 999 | 2.112 |
| 1,000 + | 1.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-34 |
| Output Voltage | 700 mV to 3.6 V |
| Output Current | 1.3 A |
| Number of Outputs | 4 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 3 V |
| Switching Frequency | 2.3 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LM10506 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | DC/DC Converter |
| Brand | Texas Instruments |
| Load Regulation | 0.3 % |
| Operating Supply Current | 100 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.000300 oz |
For more information, please refer to datasheet
Documents
| LM10506TME-A/NOPB Datasheet |
More Information
The LM10506 is an advanced PMU containing three configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives.
