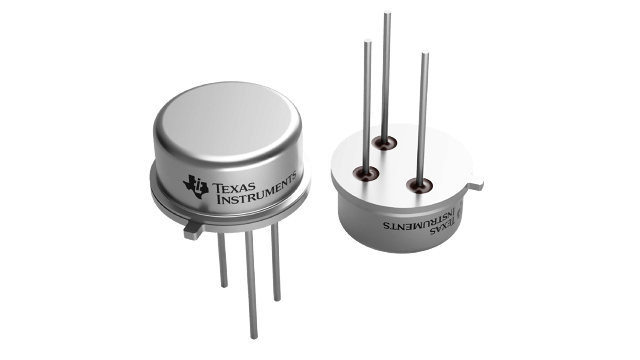

LM109H Texas Instruments - Yeehing Electronics

Extended Temperature 1A 5V Output Linear Regulator / LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	16.733
100 — 249	13.641
250 — 999	10.722
1,000 +	6.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-39
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	5.05 V
Output Current	1 A
Output Type	Fixed
Input Voltage MAX	35 V
Input Voltage MIN	7.1 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Load Regulation	50 mV
Line Regulation	50 mV
Series	LM109
Packaging	Bulk
Operating Temperature Range	- 55 C to + 150 C
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	50 dB
Product Type	Linear Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM109H Datasheet

More Information

The LM109 series are complete 5V regulators fabricated on a single silicon chip. They are designed for local regulation on digital logic cards, eliminating the distribution problems association with single-point regulation. The devices are available in two standard transistor packages. In the solid-kovar TO-5 header, it can deliver output currents in excess of 200 mA, if adequate heat sinking is provided. With the TO-3 power package, the available output current is greater than 1A.
