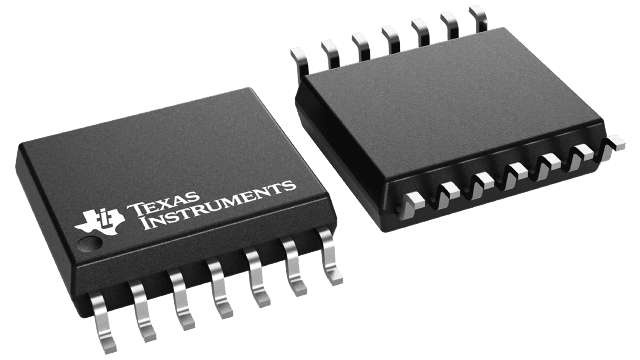

LM10CWM/NOPB Texas Instruments - Yeehing Electronics

Single, 45-V, 50-kHz operational amplifier with an integrated voltage reference

Pricing (USD)

Quantity	Unit Price
1 — 99	2.727
100 — 249	2.39
250 — 999	1.675
1,000 +	0.94

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOIC-14
Supply Voltage - Max	40 V
Output Current per Channel	20 mA
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	90 kHz
SR - Slew Rate	0.2 V/us
CMRR - Common Mode Rejection Ratio	90 dB to 102 dB
Ib - Input Bias Current	20 nA
Vos - Input Offset Voltage	2 mV
Supply Voltage - Min	1.1 V
Operating Supply Current	270 uA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Shutdown	No Shutdown
Series	LM10
Packaging	Tube
Height	2.3 mm
Input Type	Rail-to-Rail
Length	8.99 mm
Output Type	Rail-to-Rail
Product	Operational Amplifiers
Supply Type	Single, Dual
Technology	Bipolar
Width	7.5 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
Maximum Dual Supply Voltage	+/- 20 V
Minimum Dual Supply Voltage	+/- 0.55 V
Moisture Sensitive	Yes
Operating Supply Voltage	3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	50
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	1.1 V to 45 V
Voltage Gain dB	112.04 dB
Unit Weight	0.007348 oz

For more information, please refer to datasheet

Documents

LM10CWM/NOPB Datasheet

More Information

The LM10 series are monolithic linear ICs consisting of a precision reference, an adjustable reference buffer and an independent, high-quality operational amplifier.
