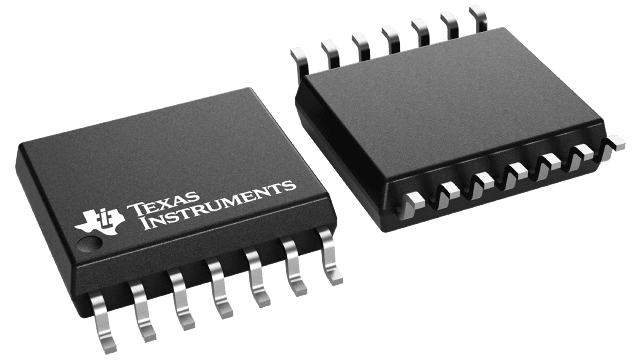

LM10CWMX/NOPB Texas Instruments - Yeehing Electronics
Single, 45-V, 50-kHz operational amplifier with an integrated voltage reference
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.273 |
100 — 249 | 1.991 |
250 — 999 | 1.396 |
1,000 + | 0.79 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SOIC-14 |
Supply Voltage - Max | 40 V |
Output Current per Channel | 20 mA |
Number of Channels | 2 Channel |
GBP - Gain Bandwidth Product | 90 kHz |
SR - Slew Rate | 0.2 V/us |
CMRR - Common Mode Rejection Ratio | 90 dB to 102 dB |
Ib - Input Bias Current | 20 nA |
Vos - Input Offset Voltage | 2 mV |
Supply Voltage - Min | 1.1 V |
Operating Supply Current | 270 uA |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Shutdown | No Shutdown |
Series | LM10 |
Packaging | Reel |
Height | 2.3 mm |
Input Type | Rail-to-Rail |
Length | 8.99 mm |
Output Type | Rail-to-Rail |
Product | Operational Amplifiers |
Supply Type | Single, Dual |
Technology | Bipolar |
Width | 7.5 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V |
Maximum Dual Supply Voltage | +/- 20 V |
Minimum Dual Supply Voltage | +/- 0.55 V |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V |
Product Type | Op Amps - Operational Amplifiers |
Factory Pack Quantity | 1000 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 112.04 dB |
Unit Weight | 0.007348 oz |
For more information, please refer to datasheet
Documents
LM10CWMX/NOPB Datasheet |
More Information
The LM10 series are monolithic linear ICs consisting of a precision reference, an adjustable reference buffer and an independent, high-quality operational amplifier.
