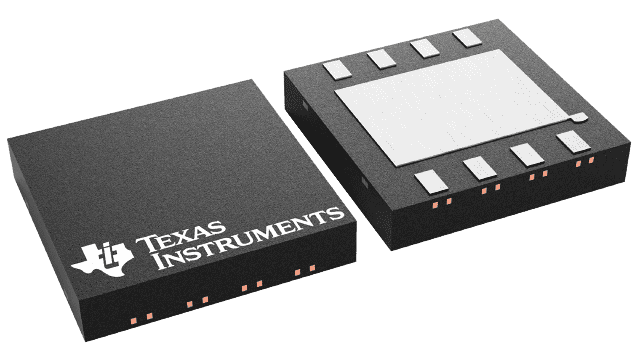

LM1117LD-1.8/NOPB Texas Instruments - Yeehing Electronics
800-mA 15-V linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.313 |
| 100 — 249 | 1.084 |
| 250 — 999 | 0.779 |
| 1,000 + | 0.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Output Voltage | 1.8 V |
| Output Current | 800 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 10 mA |
| Input Voltage MAX | 15 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 1.2 V |
| Series | LM1117 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA |
| Voltage Regulation Accuracy | +/- 1 % |
| Ib - Input Bias Current | 5 mA |
| Line Regulation | 1 mV |
| Load Regulation | 1 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 5 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| LM1117LD-1.8/NOPB Datasheet |
More Information
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current.
