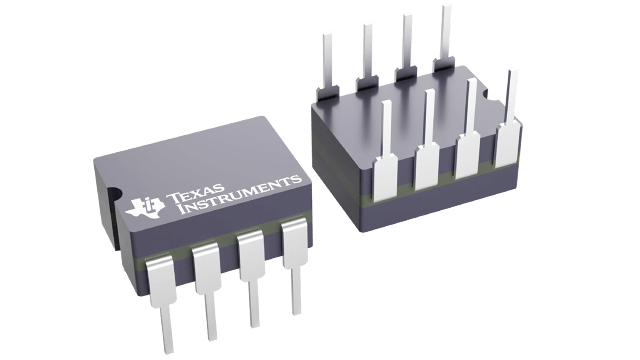

LM111J-8 Texas Instruments - Yeehing Electronics

Voltage Comparator

Pricing (USD)

Quantity	Unit Price
1 — 99	13.431
100 — 249	11.732
250 — 999	9.046
1,000 +	5.66

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Comparators
RoHS	N
Mounting Style	Through Hole
Package / Case	CDIP-8
Comparator Type	General Purpose
Number of Channels	1 Channel
Output Type	Open Collector
Ib - Input Bias Current	100 nA
Vos - Input Offset Voltage	3 mV
Supply Voltage - Max	36 V
Supply Voltage - Min	5 V
Operating Supply Current	6 mA
Response Time	200 ns
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Tube
Features	Strobe, Vos Adj Pin
Height	4.57 mm
Length	10.16 mm
Product	Analog Comparators
Series	LM111-N
Supply Type	Single, Dual
Technology	Bipolar
Type	Voltage Comparator
Width	7.87 mm
Brand	Texas Instruments
Shutdown	Shutdown
Dual Supply Voltage	+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
GBP - Gain Bandwidth Product	-
Maximum Dual Supply Voltage	+/- 18 V
Minimum Dual Supply Voltage	+/- 2.5 V
Operating Supply Voltage	9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Pd - Power Dissipation	500 mW (1/2 W)
Product Type	Analog Comparators
Factory Pack Quantity	40
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	0.5 V
Voltage Gain dB	106.02 dB
Unit Weight	0.042064 oz

For more information, please refer to datasheet

Documents

LM111J-8 Datasheet

More Information

The LM111-N, LM211-N and LM311-N are voltage comparators that have input currents nearly a thousand times lower than devices like the LM106 or LM710. They are also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Their output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, they can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
