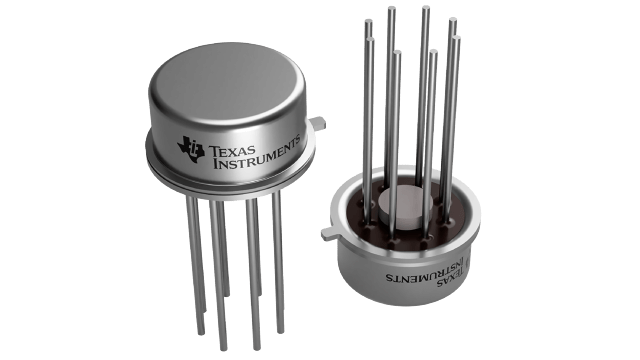

LM118H/NOPB Texas Instruments - Yeehing Electronics
Single, 40-V, 15-MHz, high slew rate operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 15.428 |
100 — 249 | 13.476 |
250 — 999 | 10.391 |
1,000 + | 6.51 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-99-8 |
Supply Voltage - Max | 40 V |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 15 MHz |
SR - Slew Rate | 70 V/us |
CMRR - Common Mode Rejection Ratio | 80 dB to 100 dB |
Ib - Input Bias Current | 250 nA |
Vos - Input Offset Voltage | 4 mV |
Supply Voltage - Min | 10 V |
Operating Supply Current | 5 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Shutdown | No Shutdown |
Series | LM118-N |
Packaging | Bulk |
Height | 4.45 mm |
Length | 9.14 mm |
Product | Operational Amplifiers |
Supply Type | Dual |
Technology | Bipolar |
Width | 9.14 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V |
en - Input Voltage Noise Density | 10 nV/sqrt Hz |
Maximum Dual Supply Voltage | +/- 20 V |
Minimum Dual Supply Voltage | +/- 5 V |
Operating Supply Voltage | 10 V to 40 V |
Pd - Power Dissipation | 500 mW (1/2 W) |
Product Type | Op Amps - Operational Amplifiers |
Factory Pack Quantity | 500 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 106.02 dB |
For more information, please refer to datasheet
Documents
LM118H/NOPB Datasheet |
More Information
The LM118 series are precision high speed operational amplifiers designed for applications requiring wide bandwidth and high slew rate. They feature a factor of ten increase in speed over general purpose devices without sacrificing DC performance.
