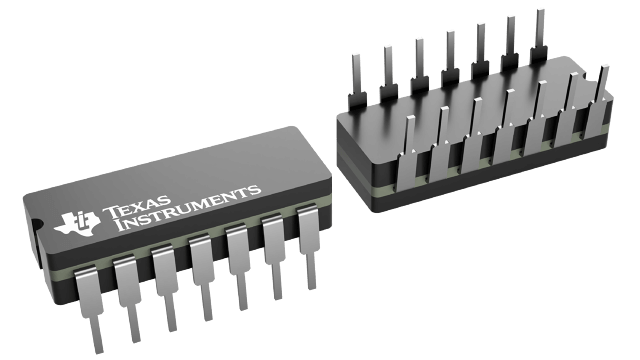

LM119J Texas Instruments - Yeehing Electronics

High Speed Dual Comparator

Pricing (USD)

Quantity	Unit Price
1 — 99	61.05
100 — 249	54.267
250 — 999	44.61
1,000 +	27.93

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Comparators
RoHS	N
Mounting Style	Through Hole
Package / Case	CDIP-16
Comparator Type	General Purpose
Number of Channels	2 Channel
Output Type	Open Collector
Ib - Input Bias Current	500 nA
Vos - Input Offset Voltage	4 mV
Supply Voltage - Max	36 V
Supply Voltage - Min	5 V
Operating Supply Current	4.3 mA
Response Time	80 ns
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Tube
Height	4.57 mm
Length	19.94 mm
Product	Analog Comparators
Series	LM119
Supply Type	Single, Dual
Technology	Bipolar
Type	High Speed Comparator
Width	7.87 mm
Brand	Texas Instruments
Shutdown	No Shutdown
Dual Supply Voltage	+/- 15 V
GBP - Gain Bandwidth Product	-
Maximum Dual Supply Voltage	+/- 18 V
Minimum Dual Supply Voltage	+/- 2.5 V
Operating Supply Voltage	9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Pd - Power Dissipation	500 mW (1/2 W)
Product Type	Analog Comparators
Factory Pack Quantity	25
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	3 V
Voltage Gain dB	92.04 dB
Unit Weight	0.042329 oz

For more information, please refer to datasheet

Documents

LM119J Datasheet

More Information

The LM119 series are precision high-speed dual comparators fabricated on a single monolithic chip. They are designed to operate over a wide range of supply voltages down to a single 5-V logic supply and ground. They have higher gain and lower input currents than devices such as the LM710. The uncommitted collector of the output stage makes the LM119 compatible with RTL, DTL, and TTL, as well as capable of driving lamps and relays at currents of up to 25 mA.
