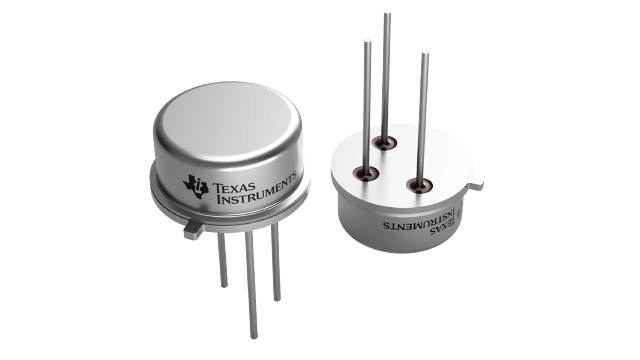

LM120H-12 Texas Instruments - Yeehing Electronics
Extended Temperature 1A Fixed Output Negative Voltage Regulator / LDO
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 17.931 |
100 — 249 | 15.663 |
250 — 999 | 12.077 |
1,000 + | 7.56 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-39 |
Number of Outputs | 1 Output |
Polarity | Negative |
Output Voltage | - 12 V |
Output Current | 200 mA |
Output Type | Fixed |
Input Voltage MAX | - 32 V |
Input Voltage MIN | - 14 V |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Load Regulation | 25 mV |
Line Regulation | 10 mV |
Quiescent Current | 4 mA |
Series | LM120 |
Packaging | Bulk |
Operating Temperature Range | - 55 C to + 150 C |
Product | Voltage Regulators |
Type | 3 Terminal Negative Regulator |
Brand | Texas Instruments |
PSRR / Ripple Rejection - Typ | 80 dB |
Pd - Power Dissipation | 2 W |
Product Type | Linear Voltage Regulators |
Factory Pack Quantity | 500 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LM120H-12 Datasheet |
More Information
The LM120 series are three-terminal negative regulators with a fixed output voltage of −5V, −12V, and −15V, and up to 1.5A load current capability. Where other voltages are required, the LM137 and LM137HV series provide an output voltage range of −1.2V to −47V.
