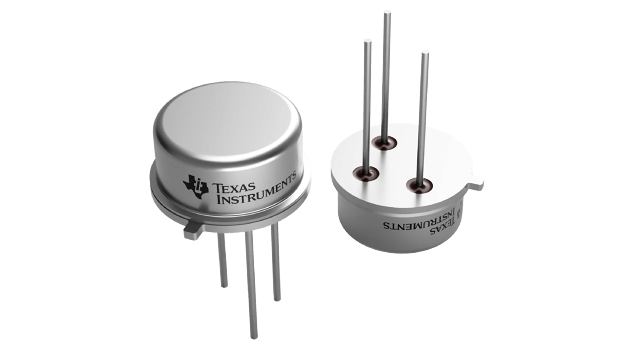

LM120H-15


YeeHing #: Y012-LM120H-15
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM120H-15 Texas Instruments - Yeehing Electronics

Extended Temperature 1A Fixed Output Negative Voltage Regulator / LDO

Pricing (USD)

Quantity Unit Price
1 — 99 17.931
100 — 249 15.663
250 — 999 12.077
1,000 + 7.56

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
RoHS N
Mounting Style Through Hole
Package / Case TO-39
Number of Outputs 1 Output
Polarity Negative
Output Voltage - 15 V
Output Current 200 mA
Output Type Fixed
Input Voltage MAX - 35 V
Input Voltage MIN - 17 V
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Load Regulation 25 mV
Line Regulation 10 mV
Quiescent Current 4 mA
Series LM120
Packaging Bulk
Operating Temperature Range - 55 C to + 150 C
Brand Texas Instruments
Pd - Power Dissipation 2 W
Product Type Linear Voltage Regulators
Factory Pack Quantity 500
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM120H-15 Datasheet

More Information

The LM120 series are three-terminal negative regulators with a fixed output voltage of −5V, −12V, and −15V, and up to 1.5A load current capability. Where other voltages are required, the LM137 and LM137HV series provide an output voltage range of −1.2V to −47V.
