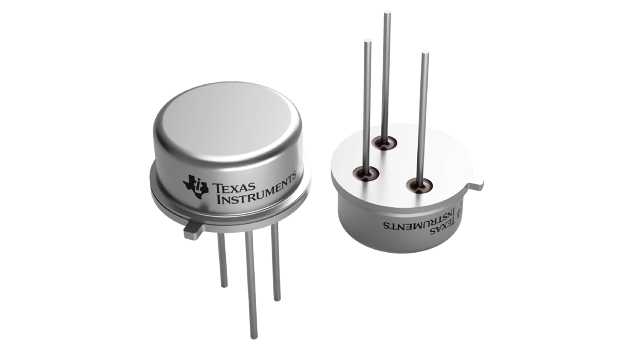

LM120H-5.0 Texas Instruments - Yeehing Electronics

Extended Temperature 1A Fixed Output Negative Voltage Regulator / LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	17.931
100 — 249	15.663
250 — 999	12.077
1,000 +	7.56

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-39
Number of Outputs	1 Output
Polarity	Negative
Output Voltage	- 5 V
Output Current	500 mA
Output Type	Fixed
Input Voltage MAX	- 25 V
Input Voltage MIN	- 7 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Load Regulation	50 mV
Line Regulation	25 mV
Series	LM120
Packaging	Bulk
Operating Temperature Range	- 55 C to + 150 C
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	64 dB
Pd - Power Dissipation	2000 mW
Product Type	Linear Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM120H-5.0 Datasheet

More Information

The LM120 series are three-terminal negative regulators with a fixed output voltage of −5V, −12V, and −15V, and up to 1.5A load current capability. Where other voltages are required, the LM137 and LM137HV series provide an output voltage range of −1.2V to −47V.
