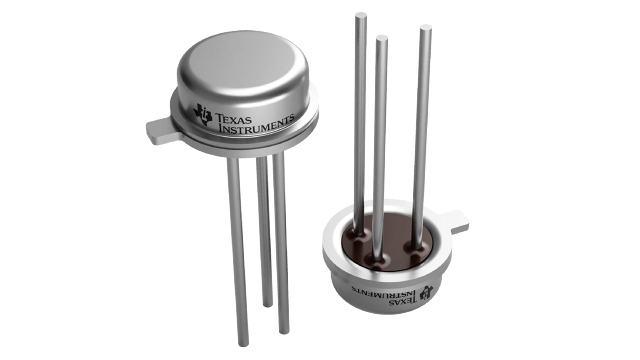

LM135H Texas Instruments - Yeehing Electronics

Analog Output Temperature Sensor in Hermetic TO

Pricing (USD)

Quantity	Unit Price
1 — 99	13.695
100 — 249	11.963
250 — 999	9.224
1,000 +	5.77

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Temperature Sensors
RoHS	N
Output Type	Analog
Configuration	Local
Accuracy	+/- 3 C
Supply Voltage - Min	5 V
Supply Voltage - Max	-
Interface Type	-
Resolution	-
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Shutdown	No Shutdown
Mounting Style	Through Hole
Package / Case	TO-3
Product	Temperature Sensor
Packaging	Bulk
Series	LM135
Brand	Texas Instruments
Operating Supply Current	400 uA to 5 mA
Product Type	Temperature Sensors
Factory Pack Quantity	500
Subcategory	Sensors

For more information, please refer to datasheet

Documents

LM135H Datasheet

More Information

The LM135 series are precision, easily-calibrated, integrated circuit temperature sensors. Operating as a 2-terminal zener, the LM135 has a breakdown voltage directly proportional to absolute temperature at 10 mV/°K. With less than 1-Ω dynamic impedance, the device operates over a current range of 400 µA to 5 mA with virtually no change in performance. When calibrated at 25°C, the LM135 has typically less than 1°C error over a 100°C temperature range. Unlike other sensors, the LM135 has a linear output.
