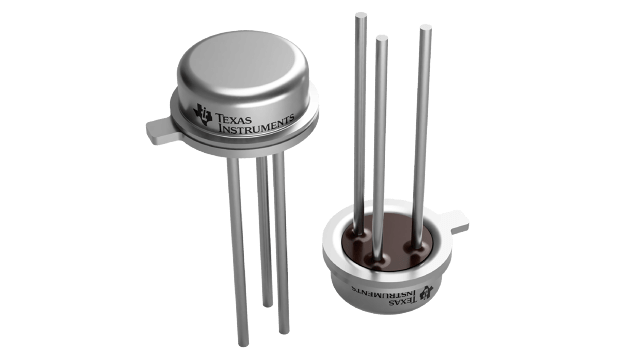

LM136H-2.5


YeeHing #: Y012-LM136H-2.5
Inventory: 4000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM136H-2.5 Texas Instruments - Yeehing Electronics

Voltage Reference Diode

Pricing (USD)

Quantity Unit Price
1 — 99 11.2
100 — 249 9.131
250 — 999 7.177
1,000 + 4.26

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Voltage References
RoHS Y
Mounting Style Through Hole
Package / Case TO-46
Reference Type Shunt Precision References
Output Voltage 2.49 V
Initial Accuracy 1 %
Temperature Coefficient 20 PPM / C
Shunt Current - Max 10 mA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Series LM136-2.5-N
Packaging Bulk
Accuracy 6 mV
Description/Function VOLTAGE REFERENCE DIODE
Height 2.67 mm
Length 5.44 mm
Operating Temperature Range - 55 C to + 125 C
Product Voltage References
Width 5.44 mm
Brand Texas Instruments
Topology Shunt References
Load Regulation 6 mV
Product Type Voltage References
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM136H-2.5 Datasheet

More Information

The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136-2.5-N allows the reference voltage and temperature coefficient to be trimmed easily.
