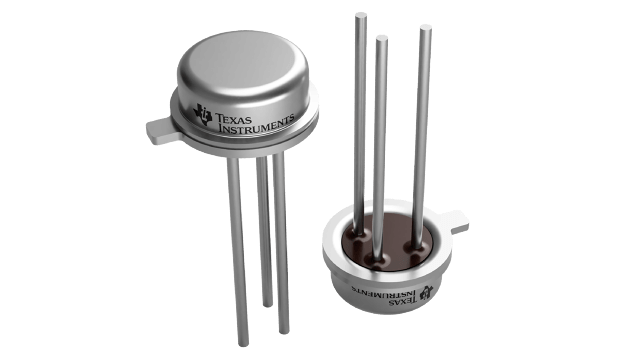

LM136H-5.0/NOPB Texas Instruments - Yeehing Electronics
5.0V Reference Diode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.489 |
| 100 — 249 | 10.997 |
| 250 — 999 | 8.643 |
| 1,000 + | 5.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Voltage References |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-46 |
| Reference Type | Shunt Precision References |
| Output Voltage | 5 V |
| Initial Accuracy | 1 % |
| Temperature Coefficient | 20 PPM / C |
| Shunt Current - Max | 10 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM136-5.0 |
| Packaging | Bulk |
| Accuracy | 12 mV |
| Description/Function | 5.0V REFERENCE DIODE |
| Height | 2.67 mm |
| Length | 5.44 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Product | Voltage References |
| Width | 5.44 mm |
| Brand | Texas Instruments |
| Topology | Shunt References |
| Load Regulation | 12 mV |
| Maximum Output Voltage | 6 V |
| Product Type | Voltage References |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM136H-5.0/NOPB Datasheet |
More Information
The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.
