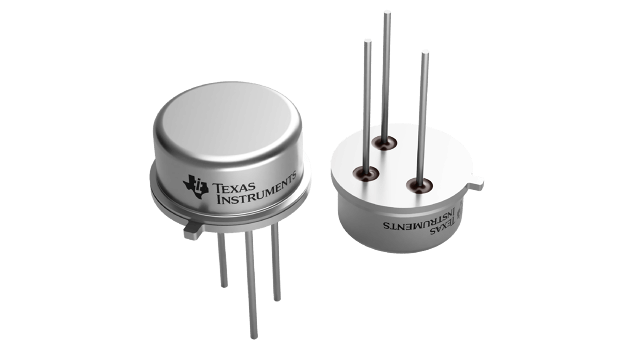

LM137H Texas Instruments - Yeehing Electronics

Extended Temperature 1.5A Adjustable Output Negative Voltage Regulator / LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	15.954
100 — 249	13.936
250 — 999	10.745
1,000 +	6.73

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-39
Number of Outputs	1 Output
Polarity	Negative
Output Voltage	- 1.2 V to - 37 V
Output Current	500 mA
Output Type	Adjustable
Input Voltage MAX	- 40 V
Input Voltage MIN	- 4.2 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Load Regulation	0.5 %
Line Regulation	0.02 %/V
Series	LM137
Packaging	Bulk
Operating Temperature Range	- 55 C to + 150 C
Product	Voltage Regulators
Type	3 Terminal Negative Regulator
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	60 dB
Pd - Power Dissipation	2 W
Product Type	Linear Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM137H Datasheet

More Information

The LM137 and LM337-N are adjustable 3-terminal negative voltage regulators capable of supplying –1.5 A or more currents over an output voltage range of –1.25 V to –37 V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137 and LM337-N feature internal current limiting, thermal shutdown and safe-area compensation, making it virtually blowout-proof against overloads.
