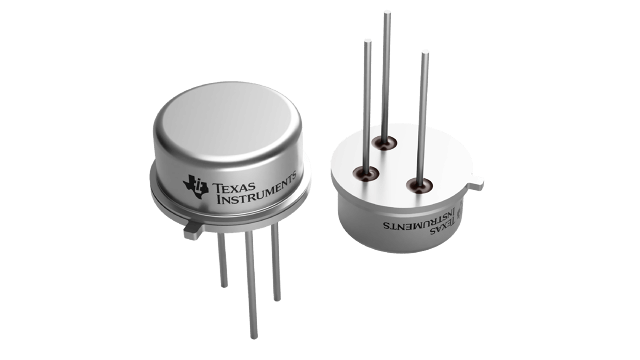

LM137HVH/883 Texas Instruments - Yeehing Electronics

1.5A -50V Input Capable Adjustable Negative Voltage Regulator / LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	47.249
100 — 249	41.271
250 — 999	31.822
1,000 +	19.92

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM137HVH/883 Datasheet

More Information

The LM137HV is an adjustable 3-terminal negative voltage regulator capable of supplying in excess of −1.5A over an output voltage range of −47V to −1.2V. This regulators is exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137HV features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads.
