LM140K-15


YeeHing #: Y012-LM140K-15
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM140K-15 Texas Instruments - Yeehing Electronics

1A Fixed Output Linear Regulator / LDO

Pricing (USD)

Quantity Unit Price
1 — 99 74.62
100 — 249 66.329
250 — 999 54.526
1,000 + 34.14

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
RoHS Y
Mounting Style Through Hole

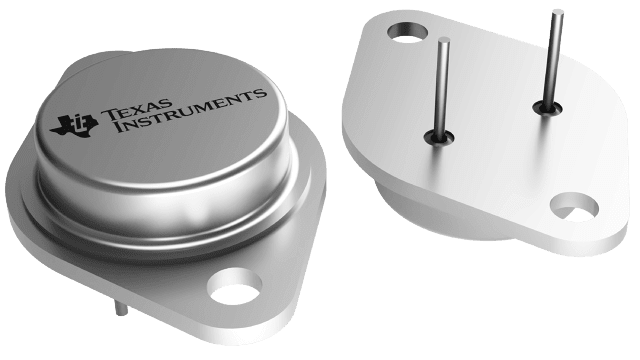

Package / Case TO-3
Number of Outputs 1 Output
Polarity Positive
Output Voltage 15 V
Output Current 2.4 A
Output Type Fixed
Input Voltage MAX 35 V
Input Voltage MIN 17.7 V
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Load Regulation 150 mV
Line Regulation 150 mV
Quiescent Current 6 mA
Series LM140K
Packaging Reel
Operating Temperature Range - 55 C to + 125 C
Brand Texas Instruments
Dropout Voltage - Max 2 V
Product Type Linear Voltage Regulators
Factory Pack Quantity 50
Subcategory PMIC - Power Management ICs
Unit Weight 0.225789 oz

For more information, please refer to datasheet

Documents

LM140K-15 Datasheet

More Information

The LM140K monolithic 3-terminal positive voltage regulator employs internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.0A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents.
