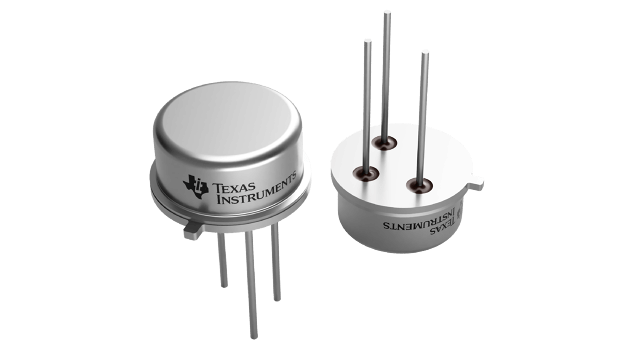

LM140LAH-5.0/NOPB


YeeHing #: Y012-LM140LAH-5.0/NOPB
Inventory: 6000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM140LAH-5.0/NOPB Texas Instruments - Yeehing Electronics

Extended Temperature 100mA Fixed Output Linear Regulator / LDO

Pricing (USD)

Quantity Unit Price
1 — 99 20.038
100 — 249 16.335
250 — 999 12.839
1,000 + 7.62

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
RoHS Y
Mounting Style Through Hole
Package / Case TO-39
Number of Outputs 1 Output
Polarity Positive
Output Voltage 5 V
Output Current 100 mA
Output Type Fixed
Input Voltage MAX 35 V
Input Voltage MIN 10 V
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Load Regulation 0.01 %/mA
Line Regulation 0.04 %/V
Series LM140L
Packaging Tray
Operating Temperature Range - 55 C to + 125 C
Brand Texas Instruments
PSRR / Ripple Rejection - Typ 62 dB
Product Type Linear Voltage Regulators
Factory Pack Quantity 500
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM140LAH-5.0/NOPB Datasheet

More Information

The LM140L series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. The LM140LA is an improved version of the LM78LXX series with a tighter output voltage tolerance (specified over the full military temperature range), higher ripple rejection, better regulation and lower quiescent current. The LM140LA regulators have ±2% VOUT specification, 0.04%/V line regulation, and 0.01%/mA load regulation. When used as a zener diode/resistor combination replacement, the LM140LA usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the LM140LA to be used in logic systems, instrumentation, Hi-Fi, and other solid state electronic equipment. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
