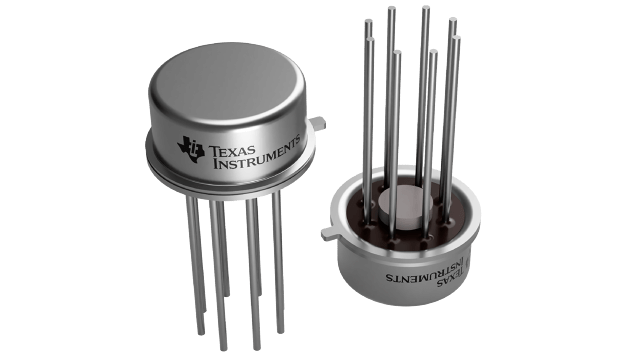

LM1558H/NOPB Texas Instruments - Yeehing Electronics
Dual, 44-V, 1-MHz operational amplifier with -55°C to 125°C operation
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 11.989 |
100 — 249 | 10.472 |
250 — 999 | 8.074 |
1,000 + | 5.06 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-99-8 |
Supply Voltage - Max | 44 V |
Number of Channels | 2 Channel |
GBP - Gain Bandwidth Product | 1 MHz |
SR - Slew Rate | 0.5 V/us |
CMRR - Common Mode Rejection Ratio | 70 dB to 90 dB |
Ib - Input Bias Current | 500 nA |
Vos - Input Offset Voltage | 5 mV |
Supply Voltage - Min | 6 V |
Operating Supply Current | 1.5 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Shutdown | No Shutdown |
Series | LM1558 |
Packaging | Bulk |
Height | 4.45 mm |
Length | 9.14 mm |
Product | Operational Amplifiers |
Supply Type | Dual |
Technology | Bipolar |
Width | 9.14 mm |
Brand | Texas Instruments |
en - Input Voltage Noise Density | 30 nV/sqrt Hz |
In - Input Noise Current Density | 0.15 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 22 V |
Minimum Dual Supply Voltage | +/- 3 V |
Operating Supply Voltage | 6 V to 44 V |
Pd - Power Dissipation | 500 mW (1/2 W) |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 77 dB |
Factory Pack Quantity | 500 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 104.08 dB |
For more information, please refer to datasheet
Documents
LM1558H/NOPB Datasheet |
More Information
The LM1458 and the LM1558 are general purpose dual operational amplifiers. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent.
