Texas Instruments
LM15851NKET
LM15851NKET
Couldn't load pickup availability

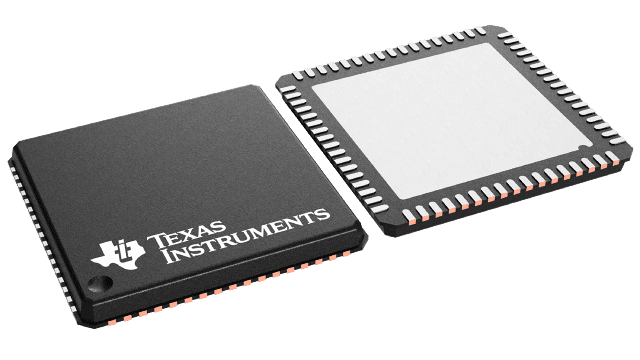

LM15851NKET Texas Instruments - Yeehing Electronics
12-Bit, 4.0-GSPS, RF-Sampling Wideband Receiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1002.112 |
| 100 — 249 | 922.579 |
| 250 — 999 | 795.327 |
| 1,000 + | 701.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Receiver |
| RoHS | Y |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Package / Case | VQFNP-68 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | LM15851 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | RF Receiver |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Integrated Circuits |
| Supply Voltage - Max | 1.995 V |
| Supply Voltage - Min | 1.805 V |
For more information, please refer to datasheet
Documents
| LM15851NKET Datasheet |
More Information
The LM15851 device is a wideband sampling and digital tuning device. Texas Instruments giga-sample analog-to-digital converter (ADC) technology enables a large block of frequency spectrum to be sampled directly at RF. An integrated DDC (Digital Down Converter) provides digital filtering and down-conversion. The selected frequency block is made available on a JESD204B serial interface. Data is output as baseband 15-bit complex information for ease of downstream processing. Based on the digital down-converter (DDC) decimation and link output rate settings, this data is output on 1 to 5 lanes of the serial interface.
