Texas Instruments

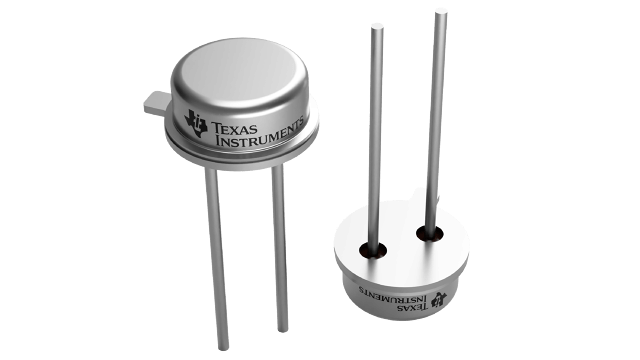

LM185H-1.2/NOPB
LM185H-1.2/NOPB
Regular price
$4.38 USD
Regular price
Sale price
$4.38 USD
Unit price
per
Couldn't load pickup availability
LM185H-1.2/NOPB Texas Instruments - Yeehing Electronics
Micropower Voltage Reference Diode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.5 |
| 100 — 249 | 9.375 |
| 250 — 999 | 7.369 |
| 1,000 + | 4.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Voltage References |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-46 |
| Reference Type | Shunt Precision References |
| Output Voltage | 1.235 V |
| Initial Accuracy | 1 % |
| Temperature Coefficient | 150 PPM / C |
| Shunt Current - Max | 20 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM185-1.2-N |
| Packaging | Bulk |
| Accuracy | 10 mV |
| Description/Function | MICROPOWER VOLTAGE REFERENCE DIODE |
| Height | 2.67 mm |
| Length | 5.44 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Product | Voltage References |
| Width | 5.44 mm |
| Brand | Texas Instruments |
| Topology | Shunt References |
| Load Regulation | 10 mV |
| Product Type | Voltage References |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM185H-1.2/NOPB Datasheet |
More Information
The LM185-1.2-N/LM285-1.2-N/LM385-1.2-N are micropower 2-terminal band-gap voltage regulator diodes. Operating over a 10μA to 20mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM185-1.2-N band-gap reference uses only transistors and resistors, low noise and good long term stability result.
