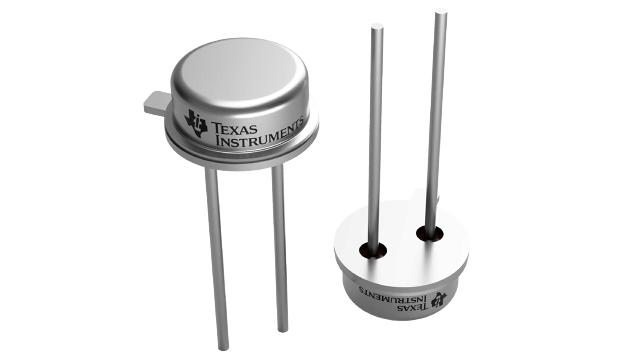

LM185H-1.2RLQV Texas Instruments - Yeehing Electronics

Radiation-hardened QMLV, 1.2-V shunt voltage reference

Pricing (USD)

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

More Information

The LM185-1.2 is a micropower 2-terminal band-gap voltage regulator diodes. Operating over a 10µA to 20mA current range, it features exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM185-1.2 band-gap reference uses only transistors and resistors, low noise and good long term stability result.
