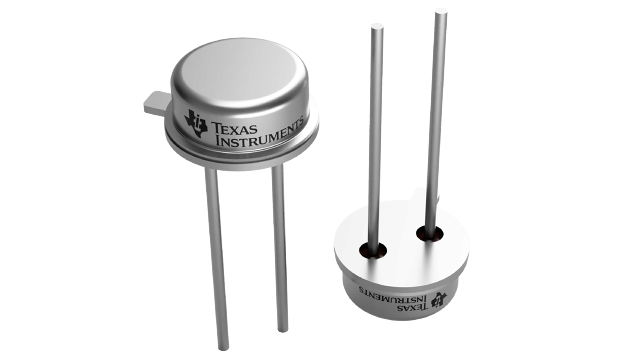

LM185H-2.5/NOPB Texas Instruments - Yeehing Electronics
Micropower Voltage Reference Diode
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 13.185 |
100 — 249 | 10.749 |
250 — 999 | 8.449 |
1,000 + | 5.02 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Voltage References |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-46 |
Reference Type | Shunt Precision References |
Output Voltage | 2.5 V |
Initial Accuracy | 1.5 % |
Temperature Coefficient | 150 PPM / C |
Shunt Current - Max | 20 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Series | LM185-ADJ |
Packaging | Bulk |
Accuracy | 10 mV |
Description/Function | ADJUSTABLE MICROPOWER VOLTAGE REFERENCE |
Height | 2.67 mm |
Length | 5.44 mm |
Operating Temperature Range | - 55 C to + 125 C |
Product | Voltage References |
Width | 5.44 mm |
Brand | Texas Instruments |
Topology | Shunt References |
Load Regulation | 10 mV |
Maximum Output Voltage | 5.3 V |
Product Type | Voltage References |
Factory Pack Quantity | 1000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LM185H-2.5/NOPB Datasheet |
More Information
The LM185-2.5-N/LM285-2.5-N/LM385-2.5-N are micropower 2-terminal band-gap voltage regulator diodes. Operating over a 20 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM-185-2.5-N band-gap reference uses only transistors and resistors, low noise and good long term stability result.
