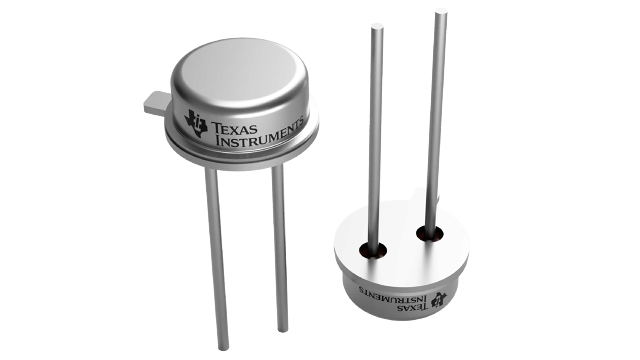

LM185H-2.5-SMD Texas Instruments - Yeehing Electronics

Micropower Voltage Reference Diode

Pricing (USD)

Quantity	Unit Price
1 — 99	38.909
100 — 249	34.586
250 — 999	28.432
1,000 +	17.80

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM185H-2.5-SMD Datasheet

More Information

The LM185-2.5 are micropower 2-terminal band-gap voltage regulator diodes. Operating over a 20 μA to 20 mA current range, they feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming is used to provide tight voltage tolerance. Since the LM185-2.5 band-gap reference uses only transistors and resistors, low noise and good long term stability result.
