Description

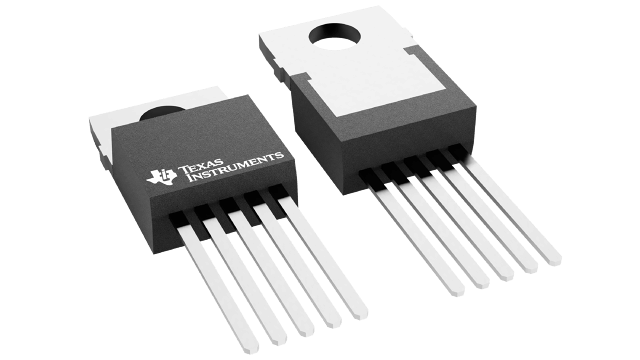

LM1875T/LF05 Texas Instruments - Yeehing Electronics
20-W Audio Power Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.198 |
| 100 — 249 | 2.802 |
| 250 — 999 | 1.965 |
| 1,000 + | 1.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM1875 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 25 W |
| Mounting Style | Through Hole |
| Package / Case | TO-220 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.015 % |
| Supply Voltage - Max | 60 V |
| Supply Voltage - Min | 16 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Tube |
| Description/Function | Speaker |
| Height | 8.89 mm |
| Input Type | Analog |
| Length | 10.16 mm |
| Output Type | 1-Channel Mono |
| Supply Type | Single, Dual |
| Width | 4.7 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 100 mA |
| Dual Supply Voltage | +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V |
| GBP - Gain Bandwidth Product | 5.5 MHz |
| Ib - Input Bias Current | 2 uA |
| Maximum Dual Supply Voltage | +/- 30 V |
| Minimum Dual Supply Voltage | +/- 8 V |
| Operating Supply Current | 70 mA |
| Operating Supply Voltage | 18 V, 24 V, 28 V |
| Output Signal Type | Single |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 95 dB |
| Factory Pack Quantity | 45 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 15 mV |
| Unit Weight | 0.081130 oz |
For more information, please refer to datasheet
Documents
| LM1875T/LF05 Datasheet |
More Information
The LM1875 is a monolithic power amplifier offering very low distortion and high quality performance for consumer audio applications.
