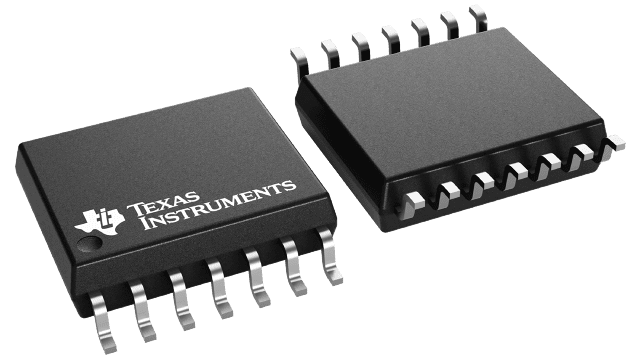

Texas Instruments
LM1877MX-9/NOPB
LM1877MX-9/NOPB
Regular price
$0.43 USD
Regular price
Sale price
$0.43 USD
Unit price
per
Couldn't load pickup availability
LM1877MX-9/NOPB Texas Instruments - Yeehing Electronics
2-W, stereo, 6- to 24-V, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.529 |
| 100 — 249 | 1.176 |
| 250 — 999 | 0.866 |
| 1,000 + | 0.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | LM1877 |
| Product | Audio Amplifiers |
| Output Power | 2 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Mono |
| Package / Case | SOIC-14 |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 6 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Input Type | Analog |
| Brand | Texas Instruments |
| Gain | 70 dB |
| Number of Channels | 2 Channel |
| Moisture Sensitive | Yes |
| Operating Supply Current | 25 mA |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 65 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 15 mV |
| Unit Weight | 0.011923 oz |
For more information, please refer to datasheet
Documents
| LM1877MX-9/NOPB Datasheet |
More Information
The LM1877 is a monolithic dual power amplifier designed to deliver 2W/channel continuous into 8Ω loads. The LM1877 is designed to operate with a low number of external components, and still provide flexibility for use in stereo phonographs, tape recorders and AM-FM stereo receivers. Each power amplifier is biased from a common internal regulator to provide high power supply rejection, and output Q point centering. The LM1877 is internally compensated for all gains greater than 10.
