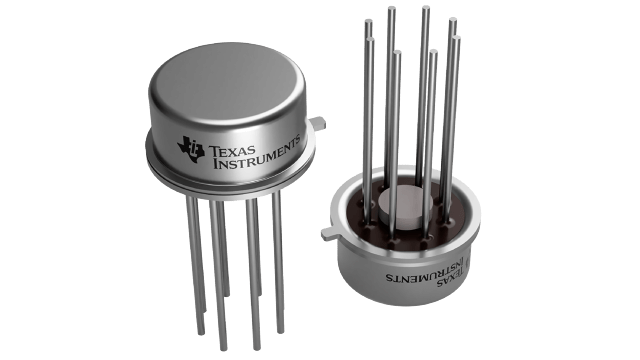

LM193AH


YeeHing #: Y001-LM193AH
Inventory: 4800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM193AH Texas Instruments - Yeehing Electronics

Low Power Low Offset Voltage Dual Comparator

Pricing (USD)

Quantity Unit Price
1 — 99 11.675
100 — 249 10.198
250 — 999 7.863
1,000 + 4.92

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog Comparators
RoHS Y
Mounting Style Through Hole
Package / Case TO-99-8
Comparator Type General Purpose
Number of Channels 2 Channel
Output Type Rail-to-Rail
Ib - Input Bias Current 100 nA
Vos - Input Offset Voltage 5 mV
Supply Voltage - Max 36 V
Supply Voltage - Min 2 V
Operating Supply Current 500 uA
Response Time 700 ns
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Packaging Bulk
Product Analog Comparators
Series LM193-N
Brand Texas Instruments
GBP - Gain Bandwidth Product -
Operating Supply Voltage 2 V to 36 V
Product Type Analog Comparators
Factory Pack Quantity 500
Subcategory Amplifier ICs
Unit Weight 0.007654 oz

For more information, please refer to datasheet

Documents

LM193AH Datasheet

More Information

The LM193-N series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.
